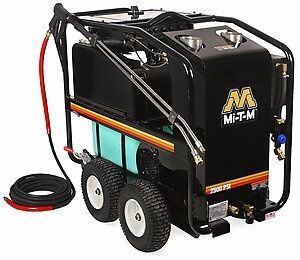

Contractors rely on the HSE Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.
Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires
Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
PSI
2500
GPM
3.2
Horsepower/Motor
6.0 HP, 230V, 1Ø, 25.0A
Pump
General
Plug Type
NEMA 6-30P
Burner Fuel Tank Capacity
10.0 gallon
Burner Fuel Cons.
2.10 gph
BTU Per Hour
294,000
Net Weight
569.00 lbs.
Shipping Weight
699.00 lbs.
Length
49.50 in.
Width
28.00 in.
Height
40.50 in.
