Buckshot Deckover Trailer: Built Tough, Engineered for Heavy Hauling!

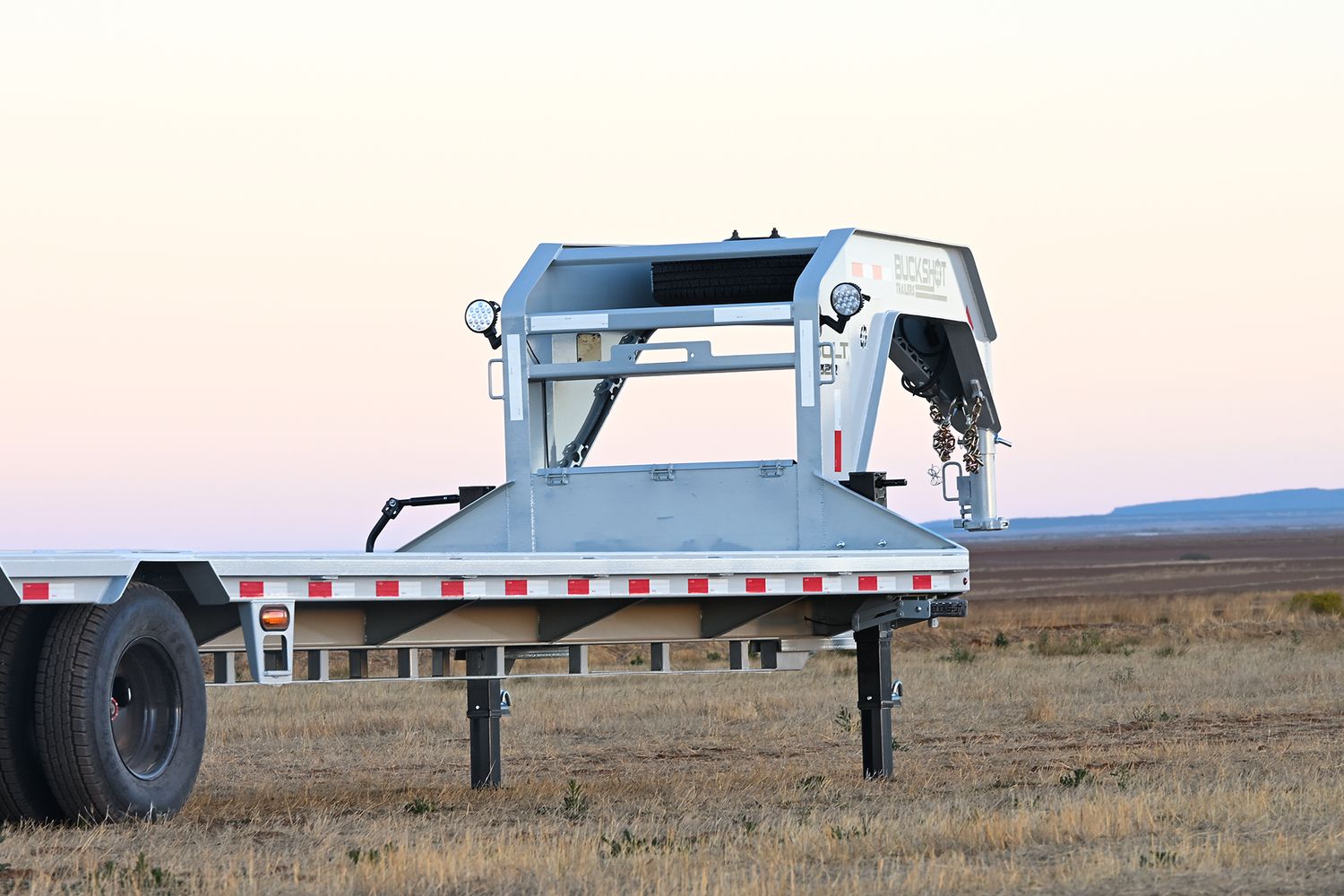

Introducing the Buckshot Deckover Trailer, the pinnacle of strength and functionality in the trailer industry. Constructed with a 3/16" engineered steel gooseneck and a 12" wide flange I-beam frame (14 lb/ft), this trailer is built to deliver unmatched stability and support for a variety of loads. Its 34" deck height is topped with a 2" x 8" treated pine wood floor, ensuring a solid and durable foundation for your cargo.

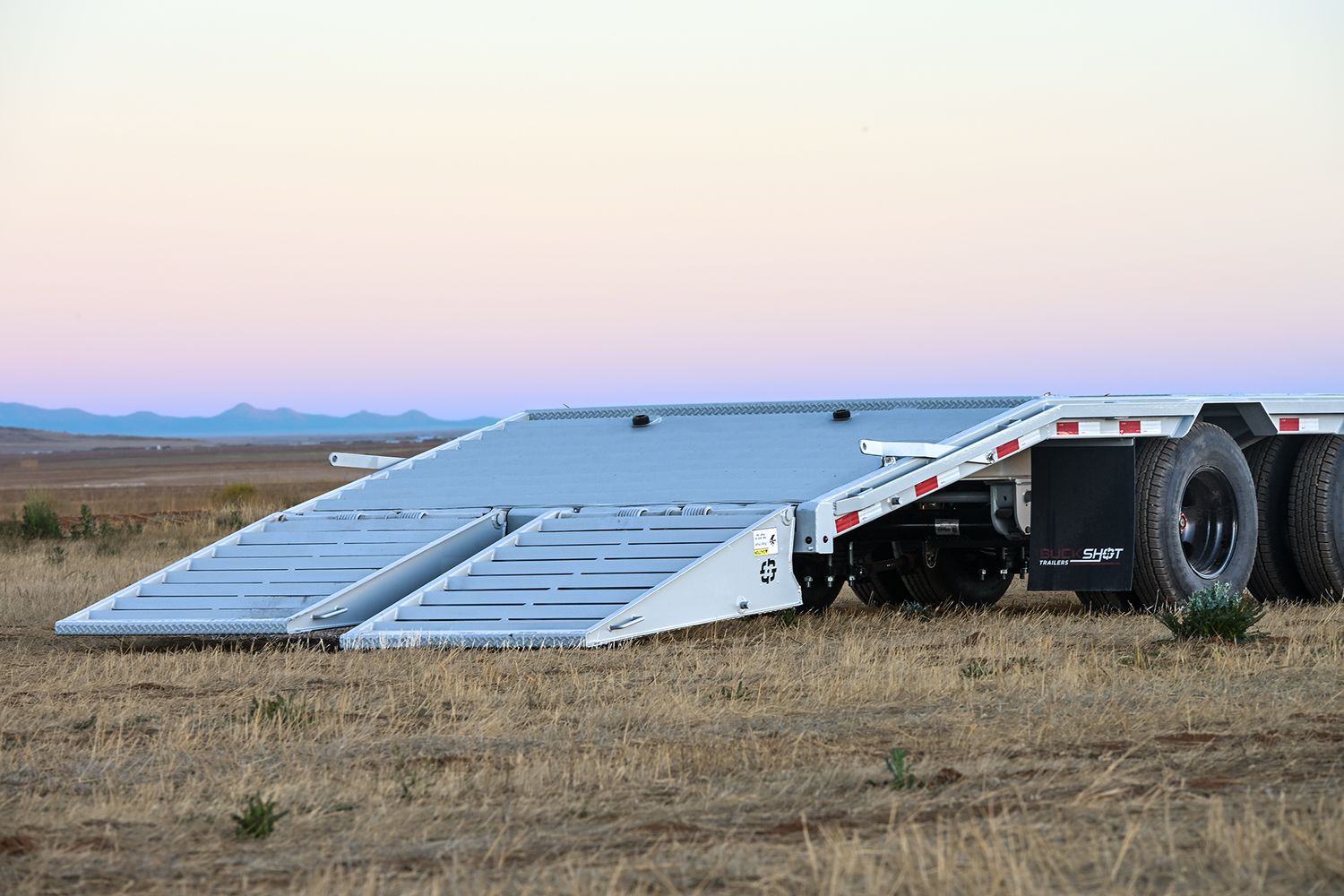

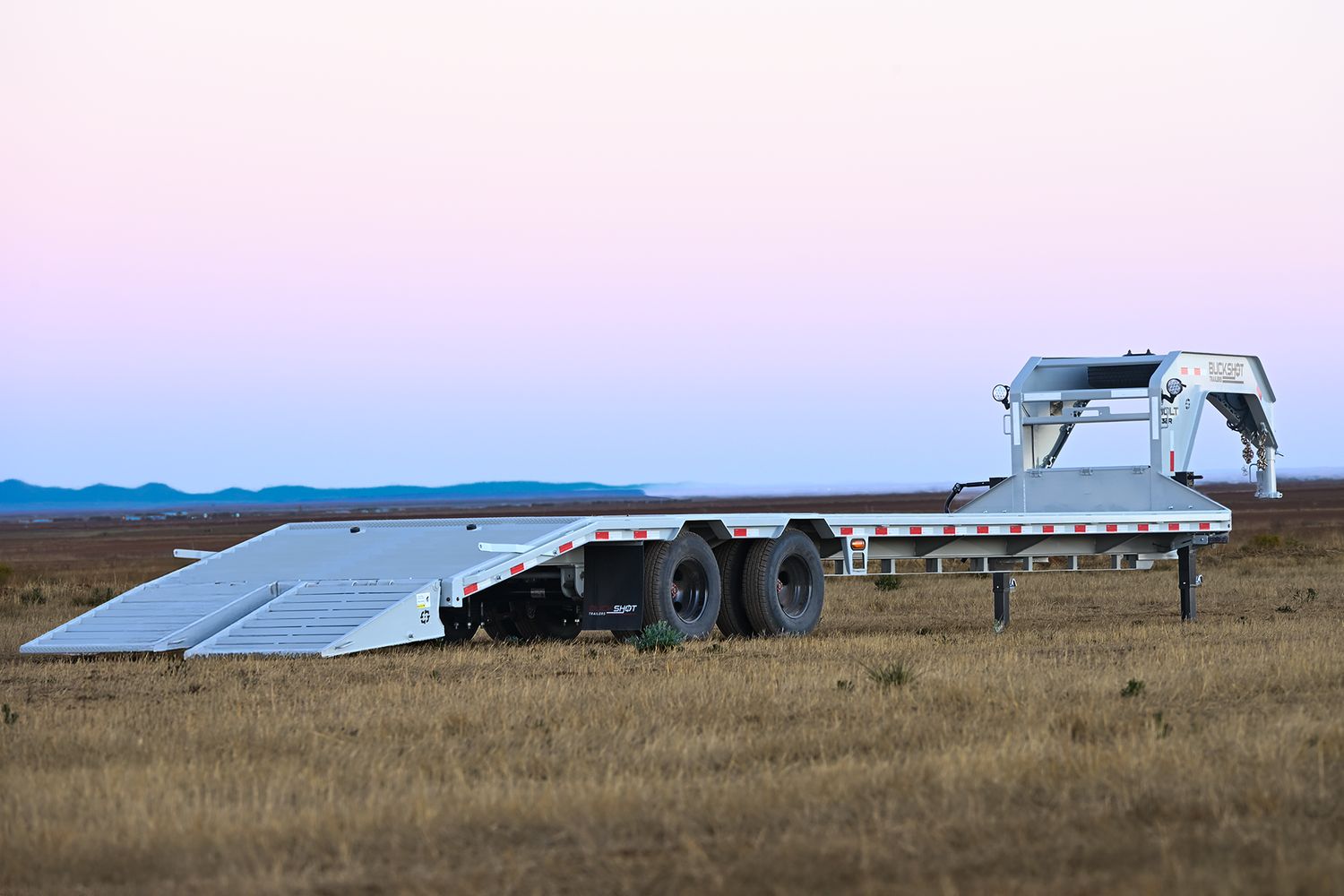

Versatility is enhanced with 42" x 53" foldable steel ramps, along with front and center steps for easy access. For secure transport, the trailer includes a rub rail, stake pockets, and pipe spools. The towing experience is optimized with a 30,000 lb adjustable coupler (2-5/16") and two 12,000 lb drop-leg jacks.
On-road performance is guaranteed with 10k electric brake axles, multi-leaf spring suspension, and ST235/80R16 10-ply radial tires on 16x6 black mod steel wheels. The trailer also features lifetime LED lighting, a sealed and molded wiring harness, and a 7-way female connector with adapter, all DOT-compliant.
Sandblasted and powder-coated for maximum durability, this Deckover trailer is your reliable partner for transporting heavy loads with confidence and ease. 🚚🔧
| Frame and Structure | |
|---|---|
| Model | Bolt R (Fold-up Ramps) Bolt S (Straight Deck) |
| Length | 25", 28", 30", 32", 34", 36", 38", 40" |

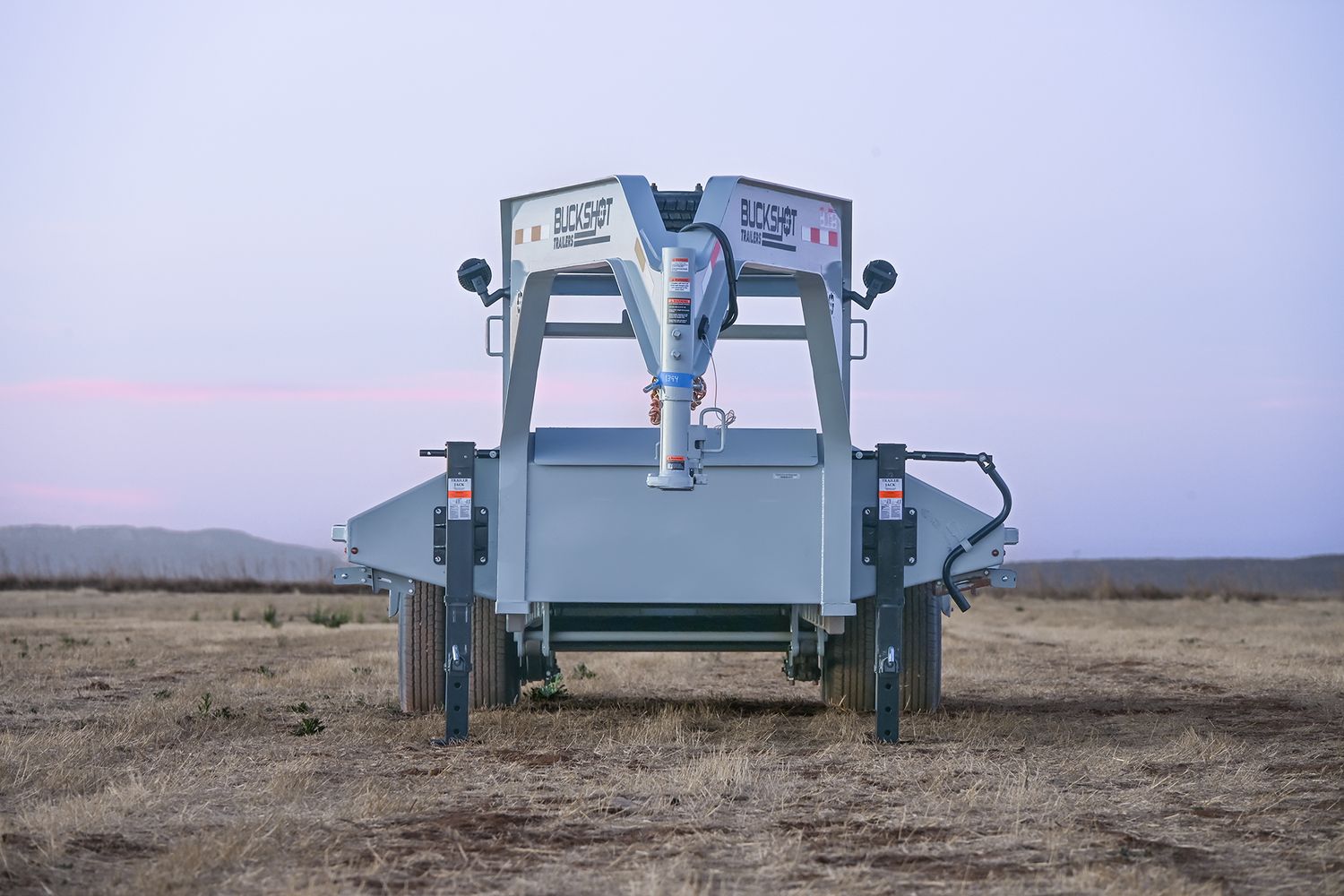

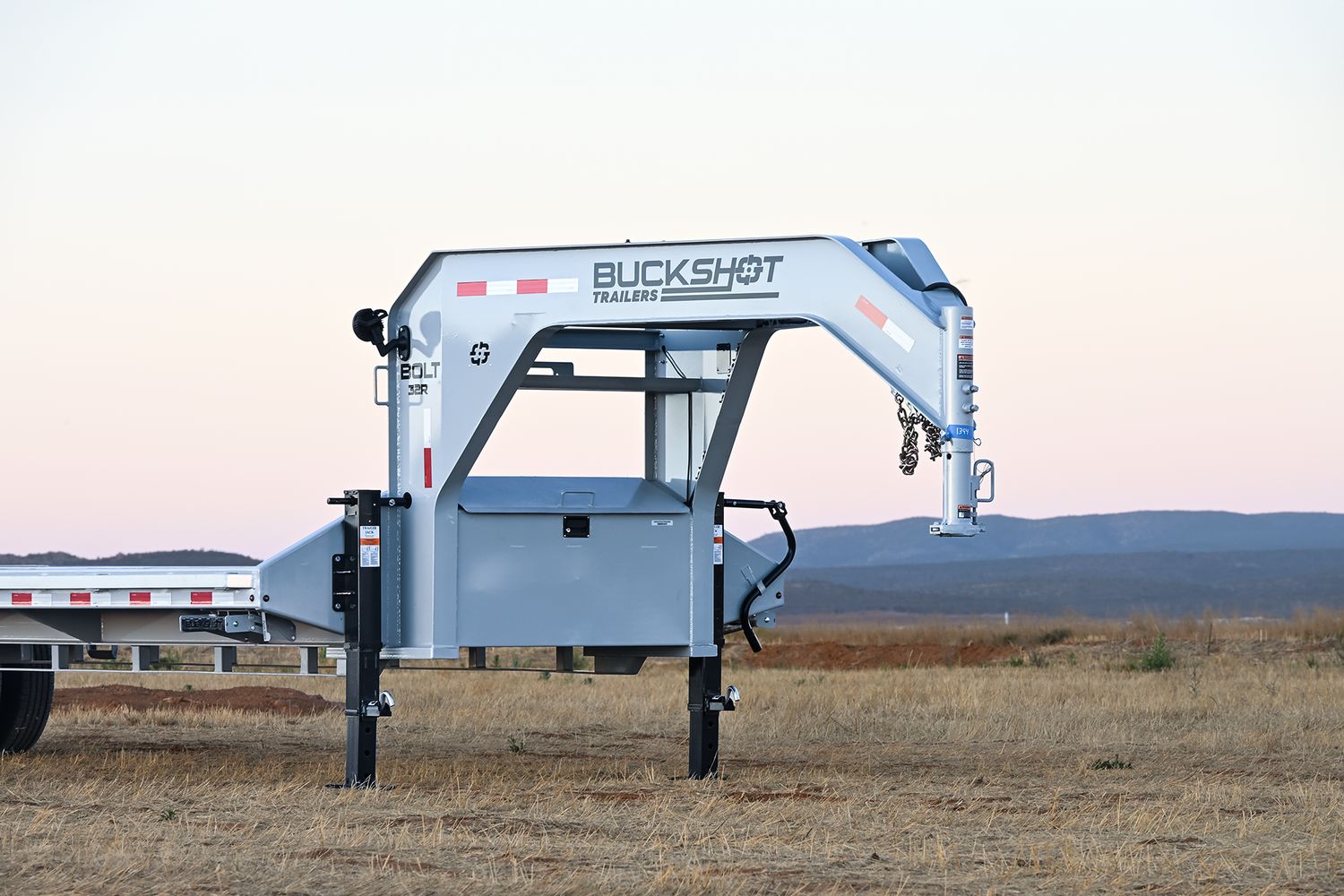

| Gooseneck | 3/16 Sheet Metal Engineered Gooseneck |
| Frame | 12" x 14 lb. I-Beam Main Frame | TwistGuard™ standard on 30' and up |
| Flooring | 2" Treated Pine Lumber Deck |
| Crossmembers | 3" Engineered Channel Crossmembers on 16" Centers |
| Fenders | Diamond Plate Low-Pro Fenders |
| Stake Pockets | Stake Pockets along both sides (Quantity depends on length) |
| Rub Rail | 2" Rubrail |
| Pipe Chain Spools | Included |
| Hitching and Towing | |
| Coupler | [Q] GN 2-5/16" Ram Coupler (30,000 lb.) |
| Safety Chains | 3/8" Grade 70 Safety Chain w/Clevis hook (2 each) |
| Jacks | Spring Loaded Drop Leg Jacks (12,000 lb.) |
| Ramp Options | |
| Ramps | 42" x 53" Sheet Metal Fold Up Ramps |
| Steps | Retractable Step on Both Sides |
| Wheels and Suspension | |
| Axles | (2) 10,000 lbs Axles Electric / Spring |
| Suspension | HDSS Adjustable Suspension |
| Tires | ST235/80R16 Radial Tires 10 ply (3,080 lbs.) |
| Electrical and Lighting | |
| Lighting | DOT Approved LED Lighting |
| Wiring Harness | All-Weather Wiring Harness (7-way RV) |
| Additional Features | |
| Breakaway System | Electric Breakaway Kit w/ Charger |
| Battery | Interstate Deep Cycle Battery |
| Storage | Standard Toolbox |
| Tie-Downs | Flat iron rails with stake pockets |

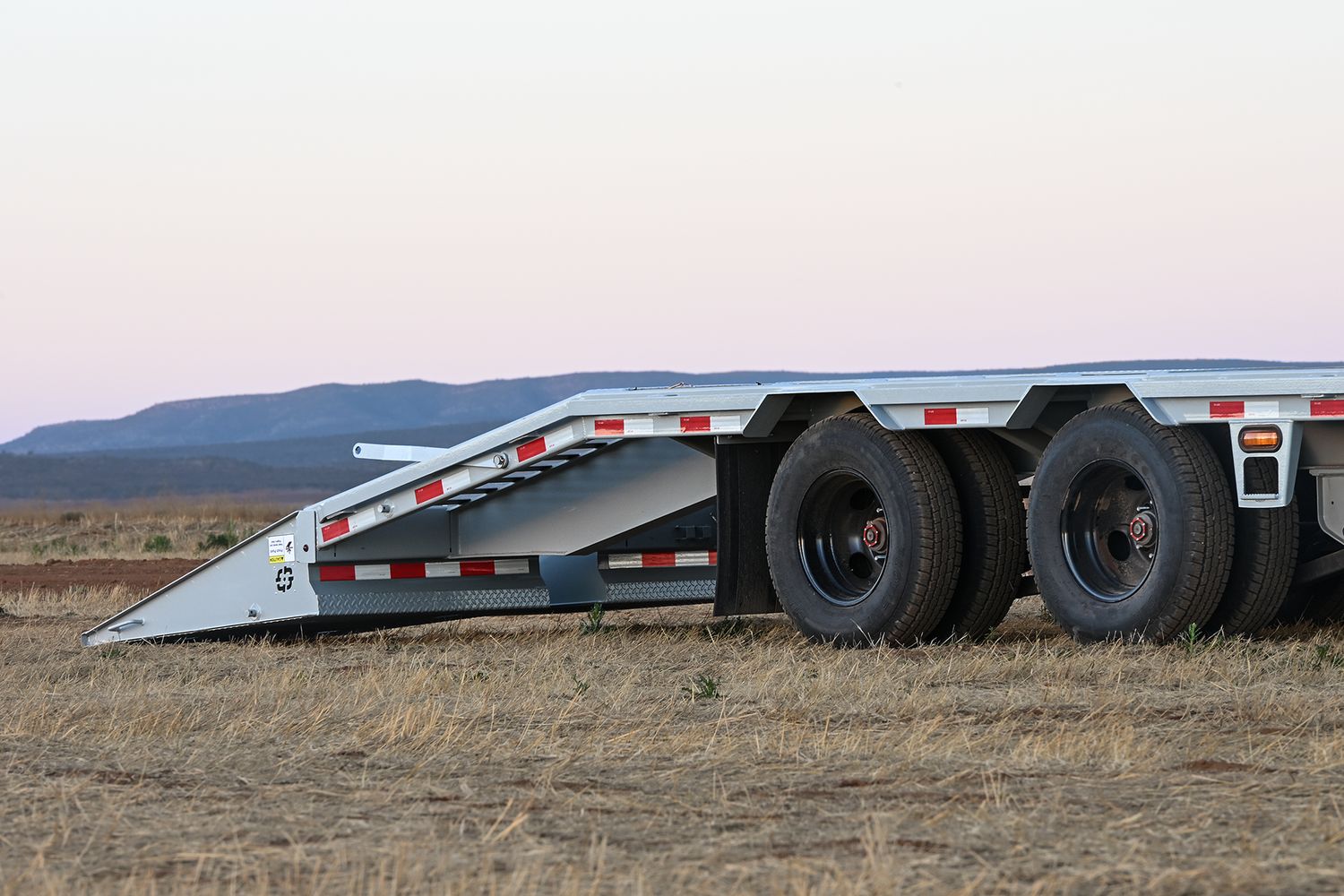

| Tail | 5' Dovetail w/ 2 Flip-over Ramps |
| TwistGuard™ | TwistGuard™ Standard on 30' and Up |
| Finish and Paint | |
| Finish | Sand Blasted |
| Paint | Powder Coated |
| Add-on Options | |
| Warrior Cargo Winch With Top Riser Tool Box | |
| Side-mount Toolbox (45" x 13") | |
| Top Riser Tool Box | |
| Custom Color | |
| 12,000 LBS Axles | |
| Slide Track Option | |
| Spare Tire | |
| Side LED Pod Light | |
